![Igus CF5.10.12 2028971](http://nguyenxuong.com/cdn/shop/products/R2028971-01_444x444.jpg?v=1594189114)

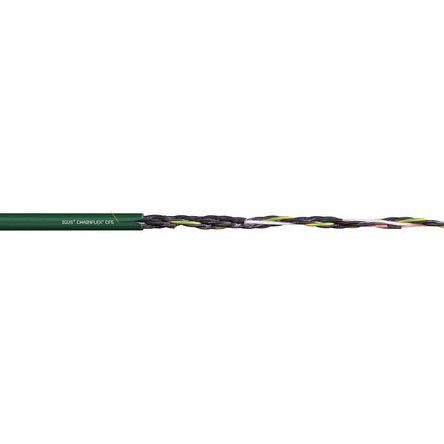

Igus 12 Core Polyvinyl Chloride PVC Sheath Actuator/Sensor Cable, 1 mm² CSA [CF5.10.12]; 202-8971
by Igus
0₫
Mã kho: 2028971
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Cores | 12 |
Cross Sectional Area | 1 mm² |
Screened/Unscreened | Unscreened |
Outer Diameter | 15mm |
Voltage Rating | 300 V |
Sheath Material | Polyvinyl Chloride PVC |
American Wire Gauge | 17 |
Cable Shape | Multicore |
Earth Cable | Yes |
Insulation Material | PVC |
Sheath Colour | Green |
Minimum Operating Temperature | -5°C |
Maximum Operating Temperature | +70°C |
Conductor Material | Copper |
Minimum Bend Radius | 6.8 x D |
Oil Resistant | Yes |
