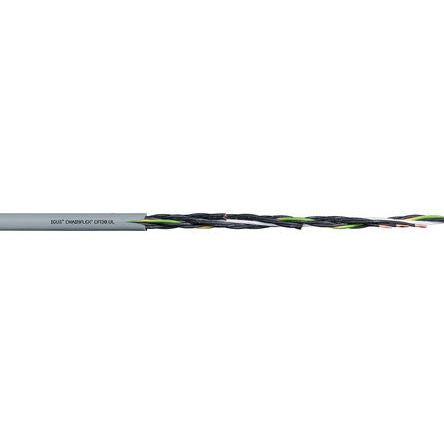

Igus 7 Core Polyvinyl Chloride PVC Sheath Actuator/Sensor Cable, 1 mm² CSA [CF130.10.07.UL]; 720-2887
by Igus
0₫
Mã kho: 7202887
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 7 |
| Cross Sectional Area | 1 mm² |
| Screened/Unscreened | Unscreened |
| Outer Diameter | 9.5mm |
| Voltage Rating | 300/500 V |
| Sheath Material | Polyvinyl Chloride PVC |
| American Wire Gauge | 17 AWG |
| Cable Shape | Multicore |
| Earth Cable | Yes |
| Insulation Material | TPE |
| Sheath Colour | Grey |
| Minimum Operating Temperature | -5°C |
| Minimum Bend Radius | 5 x D |
| Conductor Material | Bare Copper |
| Maximum Operating Temperature | +70°C |
