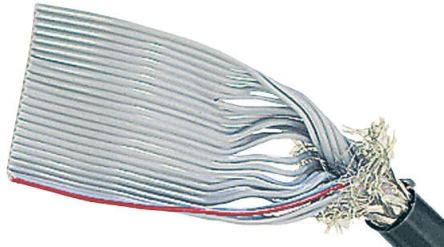

Harting 64 Way Screened Round Ribbon Cable, 81.28 mm Width [09180647007]; 693-7781
by HARTING
0₫
Mã kho: 6937781
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Ways | 64 |
| Width | 81.28 mm |
| Pitch | 1.27mm |
| Reel Length | 30m |
| Voltage Rating | 300 V |
| Capacitance | 78.7 pF/m |
| Characteristic Impedance | 75 Ω |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +105°C |
| American Wire Gauge | 28 |
| Number of Strands | 7 |
| Cable Shape | Ribbon |
| Screened/Unscreened | Screened |
| Sheath Colour | Black |
| Conductor Strand Type | Stranded |
| Outer Diameter | 13.46mm |
