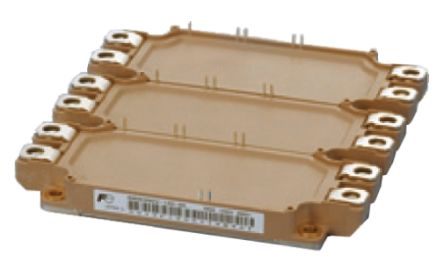

Fuji Electric 6MBi300V-120-50, M629 3 Phase Bridge IGBT Module, 300 A max, 1200 V, PCB Mount [6MBI300V-120-50]; 168-4630
0₫
Mã kho: 1684630
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Transistor Configuration | 3 Phase |
Configuration | 3 Phase Bridge |
Maximum Continuous Collector Current | 300 A |
Maximum Collector Emitter Voltage | 1200 V |
Maximum Gate Emitter Voltage | ±20V |
Channel Type | N |
Mounting Type | PCB Mount |
Package Type | M629 |
Pin Count | 29 |
Maximum Power Dissipation | 1.6 kW |
Dimensions | 162 x 150 x 17mm |
Height | 17mm |
Length | 162mm |
Maximum Operating Temperature | +150 °C |
Width | 150mm |
