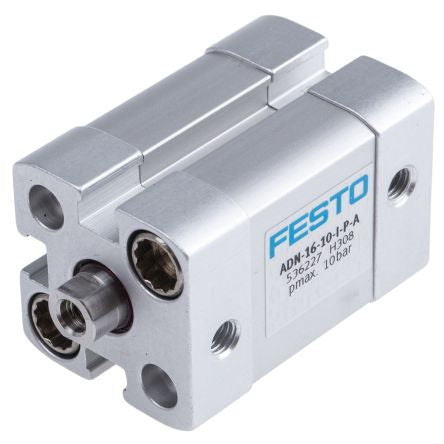

Festo Pneumatic Cylinder 16mm Bore, 10mm Stroke, ADN Series, Double Acting [ADN-16-10-I-P-A]; 121-5717
by Festo
0₫
Mã kho: 1215717
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Stroke | 10mm |
Bore | 16mm |
Action | Double |
Manufacturer Series | ADN |
Pneumatic Connection | M5 |
Piston Rod Thread Gender | Female |
Dimensions | 29 x 29 x 49.7mm |
Length | 49.7mm |
Width | 29mm |
Maximum Operating Pressure | 10 bar |
Height | 29mm |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +80°C |
