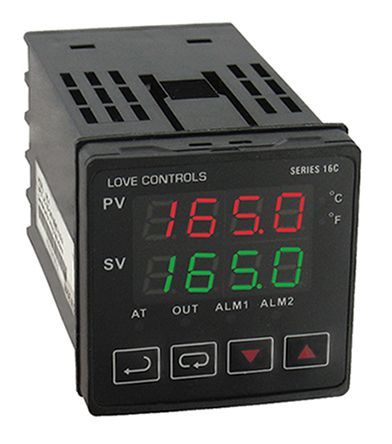

DWYER INSTRUMENTS 16C Panel Mount PID Temperature Controller, 48 x 48mm 1 Input, 1 Output Relay [16C-3]; 906-9370
0₫
Mã kho: 9069370
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Output Type | Relay |
Supply Voltage | 100 → 240 V ac |
Size | 48 x 48mm |
Number of Inputs | 1 |
Number of Outputs | 1 |
Minimum Operating Temperature | 0°C |
Maximum Operating Temperature | +50°C |
Temperature Range | -200 → +1300 (Type N Thermocouple) °C, -200 → +400 (Type T Thermocouple) °C, -200 → +500 (Type K Thermocouple) °C, -200 → +500 (Type L Thermocouple) °C, -200 → +600 (Type RTD) °C, -200 → +800 (Type U Thermocouple) °C, -100 → +850 (Type J Thermocouple) °C, 0 → +1700 (Type R Thermocouple) °C, 0 → +1700 (Type S Thermocouple) °C, 0 → +600 (Type E Thermocouple) °C, +100 → +1800 (Type B Thermocouple) °C |
Communication Module Available | Yes |
Display Type | 7-Segment LED Display |
IP Rating | IP66 |
Panel Depth | 80mm |
Series | 16C |
Termination Type | Pin |
Display Colour | Green, Red |
Mounting Type | Panel Mount |
Input Type | RTD, Thermocouple |
