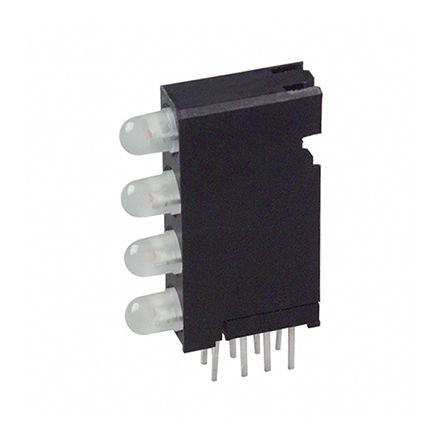

Dialight 568-0701-111F, Green & Red Right Angle PCB LED Indicator, 4 LEDs 3mm (T-1), Through Hole [568-0701-111F]; 890-7401
by Dialight
0₫
Mã kho: 8907401
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
LED Colours | Green, Red |
Number of LEDs | 4 |
Mounting Type | Through Hole |
Number of Pins | 8 |
Viewing Angle | 60 ° |
Dominant Wavelength | 565 / 635 nm |
LED Orientation | Right Angle |
Dimensions | 4.32 x 14.22 x 20.32mm |
Length | 4.32mm |
Width | 14.22mm |
Height | 20.32mm |
Intensity | 4.7 (Red) mcd, 10 (Green) mcd |
Series | 568 |
Configuration | Quad-Level |
Lens Finish | Non-Diffused, Untinted |
Lens Colour | White |
LED Size | 3mm (T-1) |
Standards Met | MIL-STD-202F, RoHS Compliant, UL Listed |
Power Dissipation | 100mW |
