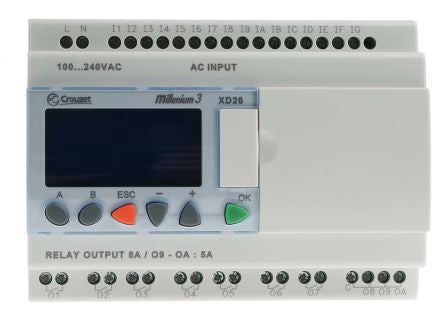

Crouzet Millenium 3 Logic Module, 230 V ac, 16 x Input, 10 x Output With Display [88974163]; 742-4226
by Crouzet
0₫
Mã kho: 7424226
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | Millenium 3 |
| Supply Voltage | 230 V ac |
| Output Type | Relay |
| Number of Outputs | 10 |
| Input Type | Digital |
| Number of Inputs | 16 |
| Communication Port Type | Serial, USB |
| Mounting Type | DIN Rail |
| Width | 71.2mm |
| Display Included | Yes |
| Depth | 68mm |
| Length | 100mm |
| Termination Type | Screw |
| Dimensions | 100 x 71.2 x 68 mm |
| Programming Interface | Front Panel |
| Program Capacity | 368 bits |
| Number of Communication Ports | 2 |
| Programming Language Used | Ladder Logic |
| Module Type | Logic Control Module |
| Output Current | 0.333333333333333 |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +55°C |
