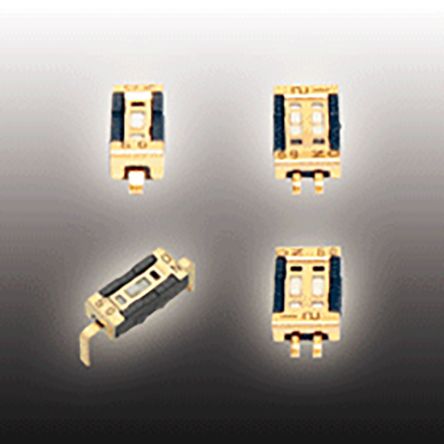

Surface Mount DIP Switch Single Pole Single Throw (SPST) 100 (Non-Switching) mA, 100 (Switching) mA Slide [CVS-08B]; 179-6355
0₫
Mã kho: 1796355
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Mounting Type | Surface Mount |
| Contact Current Rating | 100 (Non-Switching) mA, 100 (Switching) mA |
| Terminal Type | Gull Wing |
| Actuator Type | Slide |
| Length | 9mm |
| Width | 4.7mm |
| Depth | 1.35mm |
| Dimensions | 9 x 4.7 x 1.35mm |
| Contact Resistance | 200mΩ |
| Maximum Operating Temperature | +85°C |
| Actuator Material | Polyamide |
| Voltage Rating | 50V dc |
| Contact Material | Copper Alloy |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +85°C |
