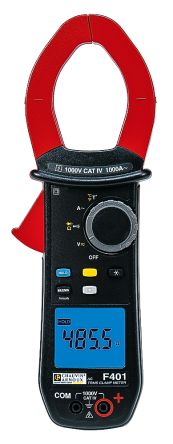

Chauvin Arnoux F401 Clamp Meter, Max Current 1kA ac CAT III 1000 V, CAT IV 1000 V [P01120941]; 766-0602
0₫
Mã kho: 7660602
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Absolute Maximum AC Current Measurement | 1kA ac |
Absolute Maximum AC Voltage Measurement | 1000V ac |
Absolute Maximum DC Voltage Measurement | 1000V dc |
Absolute Maximum Resistance Measurement | 99.99kΩ |
Model Number | F401 |
AC Current Measurement Resolution | 10mA |
Best DC Current Accuracy | ±(1% rdg + 3dgts) |
Clamp Meter Type | Multifunction Clamp |
Best AC Current Accuracy | ±(1% rdg + 3dgts) |
Best AC Voltage Accuracy | ±(1% rdg + 3dgts) |
Best DC Voltage Accuracy | ±(1% rdg + 3dgts) |
Resistance Measurement Resolution | 100mΩ |
Dimensions | 92 x 272 x 41mm |
Functions Measured | AC Current, AC Voltage, Continuity, DC Voltage, Diode, Frequency, In-Rush Current, Resistance, Temperature |
Best Temperature Measurement Accuracy | ±1% +3°C |
True RMS | Yes |
Length | 272mm |
Safety Category Level | CAT IV |
Width | 92mm |
Non-Contact Voltage Detector | No |
Power Source | Battery |
Jaw Capacity Busbars | 48mm |
Weight | 600g |
Minimum Operating Temperature | -20°C |
Height | 41mm |
AC Voltage Measurement Resolution | 10mV |
Maximum Conductor Size | 48mm |
Battery Life | 350 h |
Maximum Operating Temperature | +55°C |
Safety Category | CAT III 1000 V, CAT IV 1000 V |
Display Type | Backlit LCD |
Absolute Maximum Temperature Measurement | +1000°C |
Battery Type | AA |
Safety Category Voltage | 1000V |
Temperature Measurement Resolution | 0.1°C |
Display Type | Backlit LCD |
Best Resistance Measurement Accuracy | ±1 % + 5 digits |
