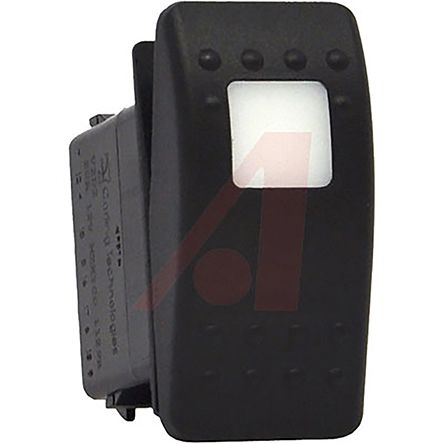

Carling Technologies Illuminated Single Pole Double Throw (SPDT), On-Off-(On) Rocker Switch Panel Mount [V7D1A60B-AEC00-000]; 881-5526
0₫
Mã kho: 8815526
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Single Pole Double Throw (SPDT) |
Switch Operation | (On)-Off-On |
Panel Cut Out Width | 21.08mm |
Panel Cut Out Height | 36.83mm |
Contact Current Rating | 20 A |
Illuminated | Yes |
Actuator Colour | Black |
Mounting Type | Panel Mount |
IP Rating | IP66, IP68 |
Terminal Type | Quick Connect |
Actuator Shape | Rectangular |
Contact Material | Silver |
Case Material | Polyester |
Minimum Operating Temperature | -40°C |
DC Voltage Rating | 12V |
Maximum Operating Temperature | +85°C |
Mechanical Life | 150000Operations |
Operating Temperature Range | -40 → +85°C |
Panel Cut Out Size | 36.83 x 21.08mm |
Contact Resistance | 10mΩ |
