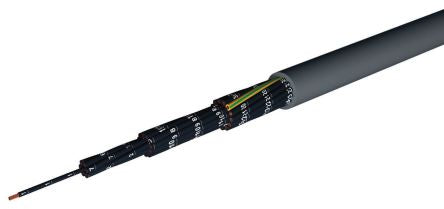

CAE Groupe 3 Core Polyvinyl Chloride PVC Sheath Actuator/Sensor Cable, 1.5 mm² CSA Flame Retardant [1030150]; 135-9266
by CAE Groupe
0₫
Mã kho: 1359266
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 3 |
| Cross Sectional Area | 1.5 mm² |
| Screened/Unscreened | Unscreened |
| Length | 100m |
| Outer Diameter | 6.6mm |
| Screen Type | Unscreened |
| Voltage Rating | 300/500 V |
| Sheath Material | Polyvinyl Chloride PVC |
| American Wire Gauge | 15 AWG |
| Cable Shape | Multicore |
| Insulation Material | PVC |
| Sheath Colour | Grey |
| Maximum Operating Temperature | +80°C |
| Standards Met | Euroclass Eca, IEC 60228, IEC 60332-1 |
| Fire Behaviour | Flame Retardant |
| Minimum Bend Radius | 7 x 6.6 (Fixed) mm, 15 x 6.6 (Moved) mm |
| Conductor Material | Copper |
| Conductor Resistance | 20 MΩ |
| Minimum Operating Temperature | -40°C |
| Series | CAELIFLEX |
