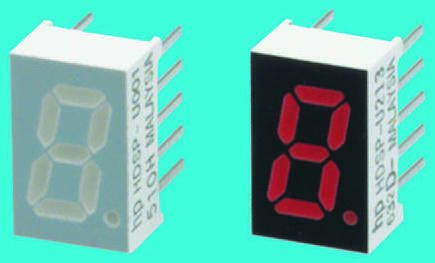

HDSP-U213 Broadcom 7-Segment LED Display, CC Red 5.4 mcd RH DP 8mm [HDSP-U213]; 178-1154
by Broadcom
0₫
Mã kho: 1781154
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Red |
| Number of Segments | 7 |
| Dominant Wavelength | 626 nm |
| Character Width | 4mm |
| Character Height | 8mm |
| Common Connection | Cathode |
| Mounting Type | Through Hole |
| External Depth | 5mm |
| External Width | 7.1mm |
| External Height | 11mm |
| External Dimensions | 11 x 7.1 x 5mm |
| Luminous Intensity | 5.4 mcd |
| Colour of Face | Black |
| Operating Temperature Range | -25 → +90°C |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +90°C |
| Forward Voltage | 2 V |
| Forward Current | 30mA |
| Decimal Orientation | Right Side |
