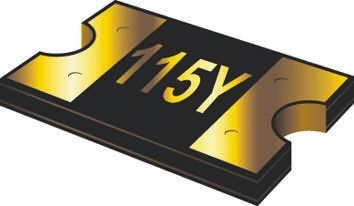

Bourns 1.1A Surface Mount Resettable Fuse, 16V [MF-MSMF110/16-2]; 647-8207
by Bourns
0₫
Mã kho: 6478207
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Trip Current | 2.2A |
| Voltage Rating | 16 V |
| Time to Trip | 0.3s |
| Hold Current | 1.1 A |
| Maximum Current | 100 A |
| Length | 4.73mm |
| Height | 0.85mm |
| Width | 3.41mm |
| Terminal Material | Electroless Nickel Immersion Gold |
| Minimum Resistance | 0.04Ω |
| Maximum Resistance | 210mΩ |
| Power Dissipation | 0.8W |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Package Size | 1812 |
| Operating Temperature Range | -40 → +85 °C |
| Dimensions | 4.73 x 3.41 x 0.85mm |
