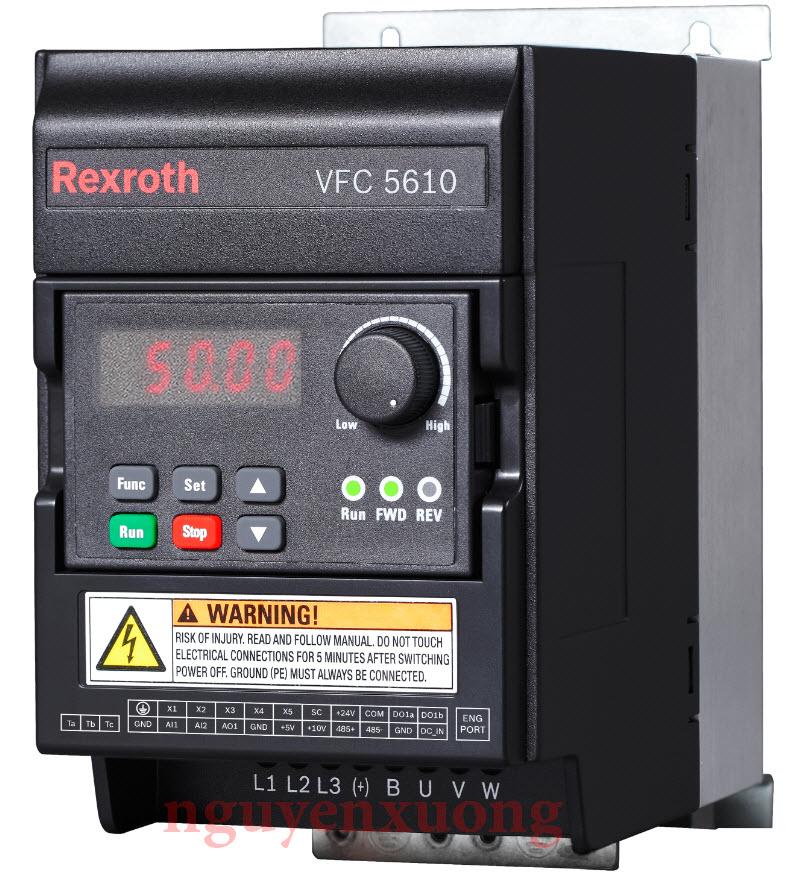

Biến tần Bosch Rexroth 132 KW (180 hp) 3 pha, VFC5610, R912007197

152.454.000₫
(Giá chưa VAT).
Mã kho: R912007197

Mã nhà sản xuất: R912007197

Đơn vị tính: Cái

Tồn kho: 1.0

Liên hệ để có giá tốt (Vietnam: 0898.332.898,  E-mail: SKF@nguyenxuong.com)

VFC5610 dải công suất từ 0.4 kW đến 250 kW (và hơn nữa trong tương lai). Với thuật toán điều khiển nâng cao SVC (Sensorless Vector Control), cùng với những đặc điểm tính năng như VFC3610, VFC5610 phù hợp cho các ứng dụng cơ bản trên 22kW và các ứng dụng cần động cơ khởi động mạnh mẽ hơn, giữ lực mạnh mẽ như trục chính của máy công cụ (tiện, phay, bào), máy nén khí trục pít-tông (piston), các ứng dụng mà thông số điều khiển ngoài tốc độ, còn có lực căng, lực xoắn trục của động cơ. VFC3610 đạt chứng chỉ tiêu chuẩn CE và RoHs

THÔNG SỐ KỸ THUẬT
Ordering Part number R912007197
Type Code VFC5610-132K-3P4-MNA-7P-NNNNN-NNNN
Serie VFC5610
Control Type Sensorless Vector, V/F
Input Voltage 3 AC 380 - 480 V
Output Power (KW) 132
Output Current (A) 253
Dual-Rating ND/HD YES. Up to 1 level in ND
Overload HD: 150 %, 60 s
ND: 120 %, 60 s
Speed Range (Hz) 0…400
Speed Regulation '04:20
Start-up Torque 0.5Hz @ 200%
Control motor type Asynchronous Motor
Brake chopper External
Brake Resistor Ask Bosch Rexroth
Ventilation Fan Removable cooling Fan
Internal DC Reactor - Line Choke Have
Internal EMC With to suppress noise
DC Bus Terminal Have
Cold Plate IP20
Keypad Detachable 7 segment standard display (5 digits). Copy Unit
Firmware General firmware
Safety Torque Off Function (STO) Without
Analog Input - AI 2 AI @ 0…10 V or 0…20 mA
Analog Output - AO 2 AO @ 0…10 V or 0…20 mA
Digital Input - DI 5 DI - NPN/PNP@ 24V 4mA / 12V 8mA
5th DI support pulse max 50kHz
Digital Output - DO 1 DO @ 30VDC, 50mA or Pulse max 32kHz
Relay Ouput -RO (Ta, Tb, Tc) 1 RO @ 250 VAC, 3A / 30VDC, 3A
Multi-Speed/Simple PLC YES-16 Stages
PID Control YES
Communication ModBus 485
Optional I/O Card YES - 4DI, 1AI, 1AO, 1OC,1 relay output
Optional Relay Output Card YES - 4 RO, 250 VAC, 3 A/30VDC, 3 A
Optional Communication Card YES - PROFIBUS DP, CANopen
Optional Encoder Card Not Support
Size WxHxD (mm) 385x923x350
Weight (kg) 76.6
Mounting Wall, Side by Side
Rated Ambient Temperature 40 ℃
Certificate CE, EAC
Application Medium to big machine: industry mixer, CNC machine, extruding equipment, machine tool, food packing
Connect to PC YES-USB Type B

Download Bosch Rexroth Datasheet R912007197

Download Bosch Rexroth ConverterWorks Software
