Ordering Part number |
R912006808 |
Type Code |
VFC3210-0K75-1P2-MNA-7P-NNNNN-NNNN |
Serie |

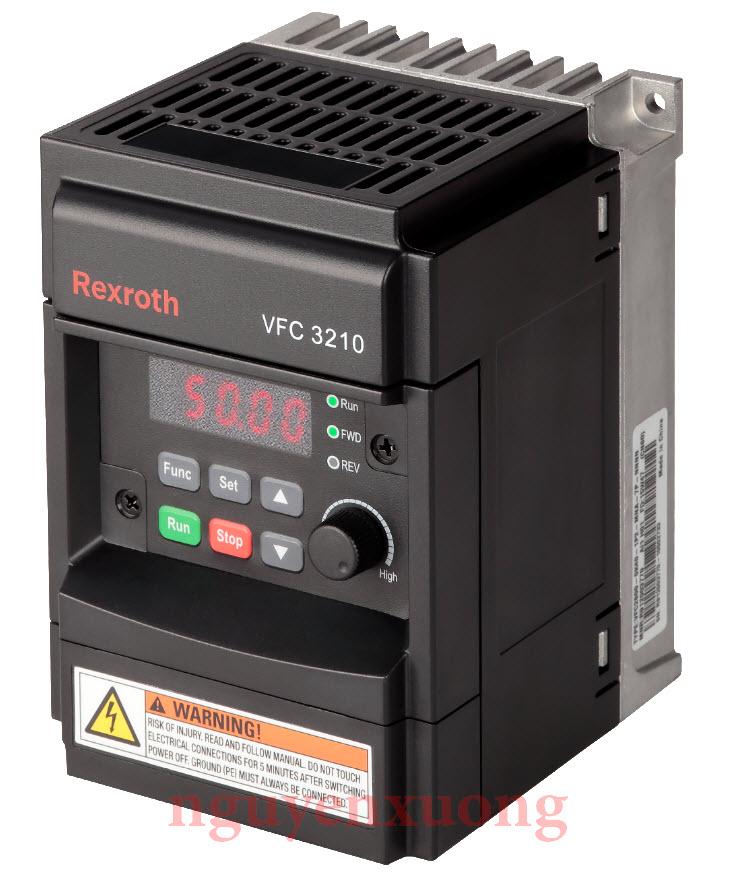

VFC3210 |
Control Type |
V/F |
Input Voltage |
1 AC 200 - 240 V |
Output Power (KW) |
0.75 |
Output Current (A) |
4.1 |
Dual-Rating ND/HD |
NO |
Overload |
150 %, 60 s |
Speed Range (Hz) |
0…400 |
Speed Regulation |
'01:50 |
Start-up Torque |
3Hz @ 150%, 1.5Hz @ 100% |
Control motor type |
Asynchronous Motor |
Brake chopper |
Not Support |
Brake Resistor |
Not Support |
Ventilation Fan |
No cooling fan |
Internal DC Reactor - Line Choke |
Without |
Internal EMC |
Without |
DC Bus Terminal |
Without |
Cold Plate |
IP20 |
Keypad |
Fixed 7 segment display |
Firmware |
General firmware |
Safety Torque Off Function (STO) |
Without |
Analog Input - AI |
1 AI @ 0…10 V or 0…20 mA |
Analog Output - AO |
1 AO @ 0…10 V |
Digital Input - DI |
4 DI - NPN @ 24V 4mA / 12V 8mA |
Digital Output - DO |
Not Support |
Relay Ouput -RO (Ta, Tb, Tc) |
1 RO @ 250 VAC, 3A / 30VDC, 3A |
Multi-Speed/Simple PLC |
YES-8 Stages |
PID Control |
YES |
Communication |
ModBus 485 |
Optional I/O Card |
Not Support |
Optional Relay Output Card |
Not Support |
Optional Communication Card |
Not Support |
Optional Encoder Card |
Not Support |
Size WxHxD (mm) |
95x156x120 |
Weight (kg) |
1.14 |
Mounting |
Wall, Side by Side |
Rated Ambient Temperature |
40 ℃ |
Certificate |
CE |
Application |
Mini machine: Wood, Food Processing & Packaging, Conveyor, HVAC |
Connect to PC |
YES-USB Type B |
