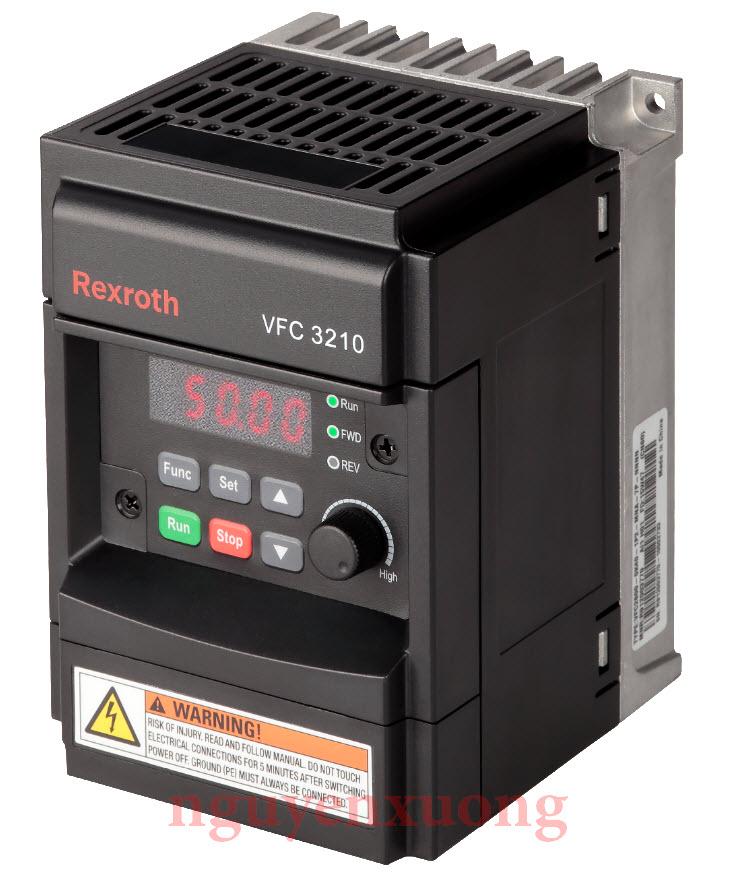

Biến tần Bosch Rexroth 0.4 KW (0.5 hp) 1 pha, VFC3210, R912006807
3.708.000₫
Mã kho: R912006807
HƯỚNG DẪN MUA HÀNG qua Điện thoại / Email
Website đang trong giai đoạn xây dựng. Thông tin liên hệ: tổng đài 0898.332.898 hoặc E-mail: Sales@nguyenxuong.com
HƯỚNG DẪN MUA HÀNG qua Điện thoại / Email
. Thông tin liên hệ: tổng đài 0898.332.898 hoặc E-mail: Sales@nguyenxuong.com
THÔNG SỐ KỸ THUẬT | |
---|---|
Ordering Part number | R912006807 |
Type Code | VFC3210-0K40-1P2-MNA-7P-NNNNN-NNNN |
Serie | VFC3210 |
Control Type | V/F |
Input Voltage | 1 AC 200 - 240 V |
Output Power (KW) | 0.4 |
Output Current (A) | 2.4 |
Dual-Rating ND/HD | NO |
Overload | 150 %, 60 s |
Speed Range (Hz) | 0…400 |
Speed Regulation | '01:50 |
Start-up Torque | 3Hz @ 150%, 1.5Hz @ 100% |
Control motor type | Asynchronous Motor |
Brake chopper | Not Support |
Brake Resistor | Not Support |
Ventilation Fan | No cooling fan |
Internal DC Reactor - Line Choke | Without |
Internal EMC | Without |
DC Bus Terminal | Without |
Cold Plate | IP20 |
Keypad | Fixed 7 segment display |
Firmware | General firmware |
Safety Torque Off Function (STO) | Without |
Analog Input - AI | 1 AI @ 0…10 V or 0…20 mA |
Analog Output - AO | 1 AO @ 0…10 V |
Digital Input - DI | 4 DI - NPN @ 24V 4mA / 12V 8mA |
Digital Output - DO | Not Support |
Relay Ouput -RO (Ta, Tb, Tc) | 1 RO @ 250 VAC, 3A / 30VDC, 3A |
Multi-Speed/Simple PLC | YES-8 Stages |
PID Control | YES |
Communication | ModBus 485 |
Optional I/O Card | Not Support |
Optional Relay Output Card | Not Support |
Optional Communication Card | Not Support |
Optional Encoder Card | Not Support |
Size WxHxD (mm) | 90x146x105 |
Weight (kg) | 0.9 |
Mounting | Wall, Side by Side |
Rated Ambient Temperature | 40 ℃ |
Certificate | CE |
Application | Mini machine: Wood, Food Processing & Packaging, Conveyor, HVAC |
Connect to PC | YES-USB Type B |
