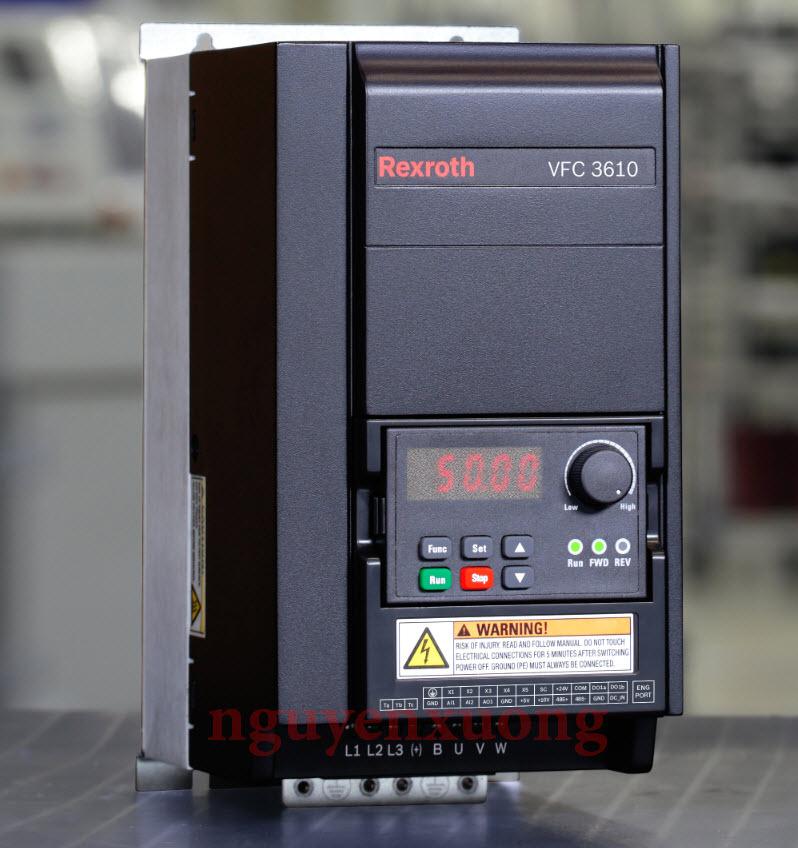

Biến tần Bosch Rexroth 22 KW (30 hp) 3 pha, VFC3610, R912006277
27.517.000₫
Mã kho: R912006277
| THÔNG SỐ KỸ THUẬT: | ||
|---|---|---|
| Thông số | Chi tiết | Chọn |
| Ordering Part number | R912006277 | |
| Type Code | VFC3610-22K0-3P4-MNA-7P-NNNNN-NNNN | |
| Serie | VFC3610 | |
| Control Type | V/F | |
| Input Voltage | 3 AC 380 - 480 V | |
| Output Power (KW) | 22 | |
| Output Current (A) | 45.2 | |
| Dual-Rating ND/HD | YES. Up to 1 level in ND | |
| Overload | 150 % | |
| Speed Range (Hz) | 0…400 | |
| Speed Regulation | 50 | |
| Start-up Torque | 3Hz @ 150% | |
| Control motor type | Asynchronous Motor | |
| Brake chopper | Internal | |
| Brake Resistor | 18.9Ω 3500W . Brake Ratio 10%. For other ask Bosch Rexroth | |
| Ventilation Fan | Removable cooling Fan | |
| Internal DC Reactor - Line Choke | Without | |
| Internal EMC | Without | |
| DC Bus Terminal | Have | |
| Cold Plate | IP20 | |
| Keypad | Detachable 7 segment standard display (5 digits). Copy Unit | |
| Firmware | General firmware | |
| Safety Torque Off Function (STO) | Without | |
| Analog Input - AI | 2 AI @ 0…10 V or 0…20 mA | |
| Analog Output - AO | 2 AO @ 0…10 V or 0…20 mA | |
| Digital Input - DI | 5 DI - NPN/PNP@ 24V 4mA / 12V 8mA 5th DI support pulse max 50kHz | |
| Digital Output - DO | 1 DO @ 30VDC | |
| Tc) | 1 RO @ 250 VAC | |
| Multi-Speed/Simple PLC | YES-16 Stages | |
| PID Control | YES | |
| Communication | ModBus 485 | |
| Optional I/O Card | YES - 4DI | |
| Optional Relay Output Card | YES - 4 RO | |
| Optional Communication Card | YES - PROFIBUS DP | |
| Optional Encoder Card | Not Support | |
| Size WxHxD (mm) | 165x315x241 | |
| Weight (kg) | 8 | |
| Mounting | Wall | |
| Rated Ambient Temperature | 40 ℃ | |
| Certificate | CE | |
| Application | Fan | |
| Connect to PC | YES-USB Type B | |
