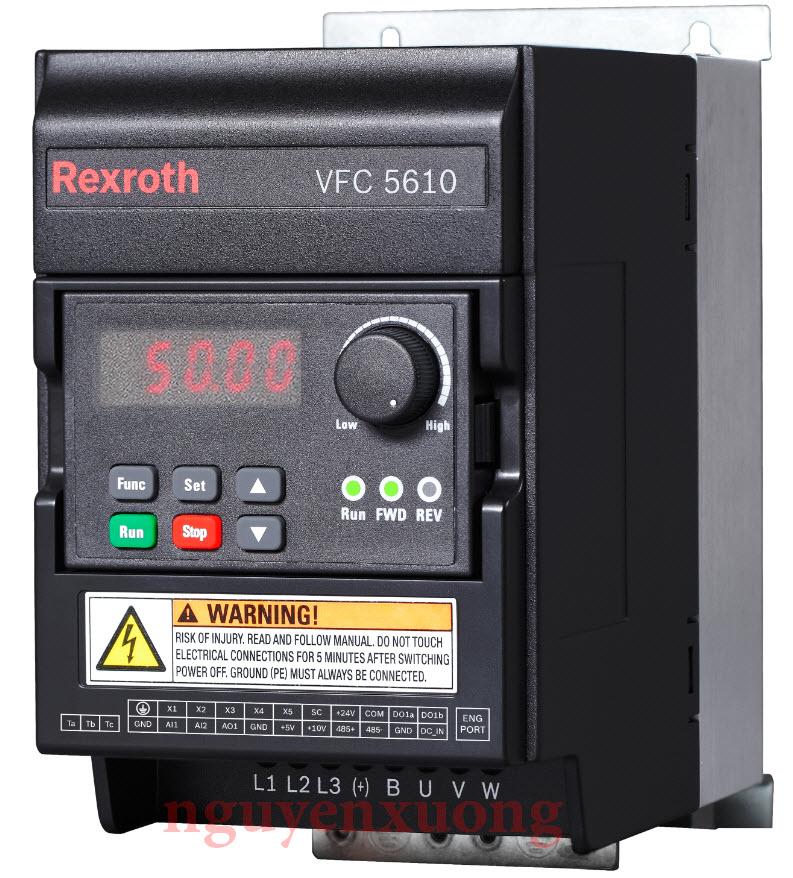

Biến tần Bosch Rexroth 90 KW (125 hp) 3 pha, VFC5610, R912005972
106.779.000₫
Mã kho: R912005972
HƯỚNG DẪN MUA HÀNG qua Điện thoại / Email
Website đang trong giai đoạn xây dựng. Thông tin liên hệ: tổng đài 0898.332.898 hoặc E-mail: Sales@nguyenxuong.com
HƯỚNG DẪN MUA HÀNG qua Điện thoại / Email
. Thông tin liên hệ: tổng đài 0898.332.898 hoặc E-mail: Sales@nguyenxuong.com
THÔNG SỐ KỸ THUẬT | |
---|---|
Ordering Part number | R912005972 |
Type Code | VFC5610-90K0-3P4-MNA-7P-NNNNN-NNNN |
Serie | VFC5610 |
Control Type | Sensorless Vector, V/F |
Input Voltage | 3 AC 380 - 480 V |
Output Power (KW) | 90 |
Output Current (A) | 176 |
Dual-Rating ND/HD | YES. Up to 1 level in ND |
Overload | HD: 150 %, 60 s ND: 120 %, 60 s |
Speed Range (Hz) | 0…400 |
Speed Regulation | '04:20 |
Start-up Torque | 0.5Hz @ 200% |
Control motor type | Asynchronous Motor |
Brake chopper | External |
Brake Resistor | 6Ω 10000W . Brake Ratio 10%. For other ask Bosch Rexroth |
Ventilation Fan | Removable cooling Fan |
Internal DC Reactor - Line Choke | Without |
Internal EMC | Without |
DC Bus Terminal | Have |
Cold Plate | IP20 |
Keypad | Detachable 7 segment standard display (5 digits). Copy Unit |
Firmware | General firmware |
Safety Torque Off Function (STO) | Without |
Analog Input - AI | 2 AI @ 0…10 V or 0…20 mA |
Analog Output - AO | 2 AO @ 0…10 V or 0…20 mA |
Digital Input - DI | 5 DI - NPN/PNP@ 24V 4mA / 12V 8mA 5th DI support pulse max 50kHz |
Digital Output - DO | 1 DO @ 30VDC, 50mA or Pulse max 32kHz |
Relay Ouput -RO (Ta, Tb, Tc) | 1 RO @ 250 VAC, 3A / 30VDC, 3A |
Multi-Speed/Simple PLC | YES-16 Stages |
PID Control | YES |
Communication | ModBus 485 |
Optional I/O Card | YES - 4DI, 1AI, 1AO, 1OC,1 relay output |
Optional Relay Output Card | YES - 4 RO, 250 VAC, 3 A/30VDC, 3 A |
Optional Communication Card | YES - PROFIBUS DP, CANopen |
Optional Encoder Card | Not Support |
Size WxHxD (mm) | 325x760x342 |
Weight (kg) | 52.5 |
Mounting | Wall, Side by Side |
Rated Ambient Temperature | 40 ℃ |
Certificate | CE, EAC |
Application | Medium to big machine: industry mixer, CNC machine, extruding equipment, machine tool, food packing |
Connect to PC | YES-USB Type B |
