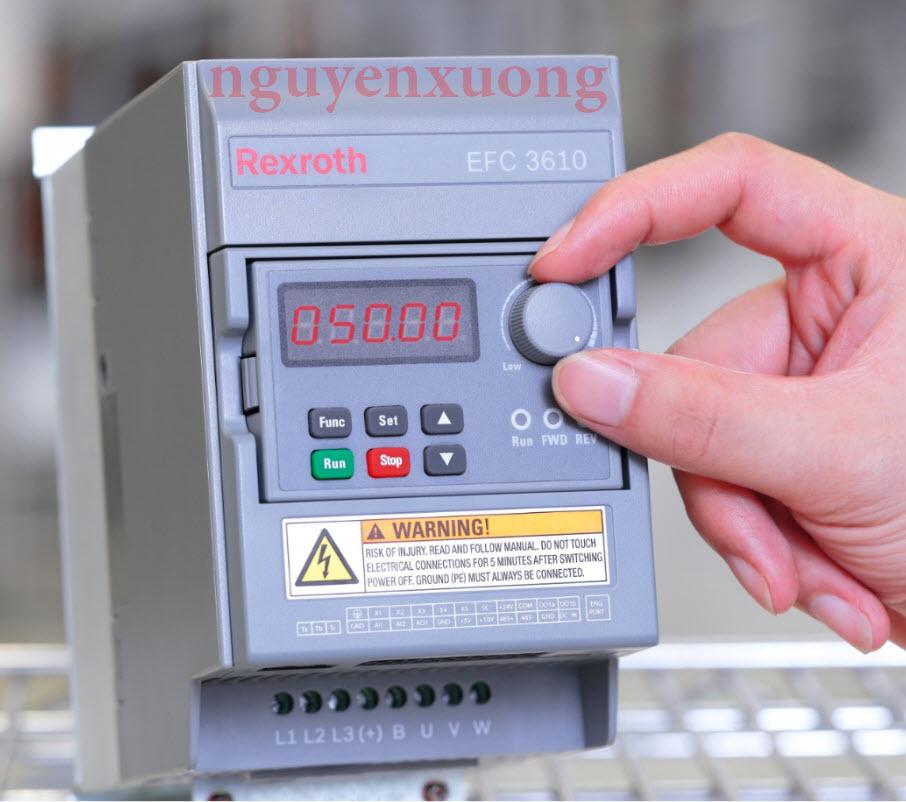

Biến tần Bosch Rexroth 0.75 KW (1 hp) 1 pha, EFC3610, R912005714
5.375.000₫
Mã kho: R912005714
HƯỚNG DẪN MUA HÀNG qua Điện thoại / Email
Website đang trong giai đoạn xây dựng. Thông tin liên hệ: tổng đài 0898.332.898 hoặc E-mail: Sales@nguyenxuong.com
HƯỚNG DẪN MUA HÀNG qua Điện thoại / Email
. Thông tin liên hệ: tổng đài 0898.332.898 hoặc E-mail: Sales@nguyenxuong.com
THÔNG SỐ KỸ THUẬT | |
---|---|
Ordering Part number | R912005714 |
Type Code | EFC3610-0K75-1P2-MDA-7P-NNNNN-NNNN |
Serie | EFC3610 |
Control Type | V/F |
Input Voltage | 1 AC 200 - 240 V |
Output Power (KW) | 0.75 |
Output Current (A) | 4.1 |
Dual-Rating ND/HD | NO |
Overload | 150 %, 60 s; 200 %, 1 s |
Speed Range (Hz) | 0…400 |
Speed Regulation | '01:50 |
Start-up Torque | 3Hz @ 150%, 1.5Hz @ 100% |
Control motor type | Asynchronous Motor |
Brake chopper | Internal |
Brake Resistor | 190Ω 100W . Brake Ratio 10%. For other ask Bosch Rexroth |
Ventilation Fan | No cooling fan |
Internal DC Reactor - Line Choke | Without |
Internal EMC | C3, Can be disable via a screw |
DC Bus Terminal | Without |
Cold Plate | IP20 |
Keypad | Detachable 7 segment standard display (5 digits). Copy Unit |
Firmware | General firmware |
Safety Torque Off Function (STO) | Without |
Analog Input - AI | 2 AI @ 0…10 V or 0…20 mA |
Analog Output - AO | 2 AO @ 0…10 V or 0…20 mA |
Digital Input - DI | 5 DI - NPN/PNP@ 24V 4mA / 12V 8mA 5th DI support pulse max 50kHz |
Digital Output - DO | 1 DO @ 30VDC, 50mA or Pulse max 32kHz |
Relay Ouput -RO (Ta, Tb, Tc) | 1 RO @ 250 VAC, 3A / 30VDC, 3A |
Multi-Speed/Simple PLC | YES-16 Stages |
PID Control | YES |
Communication | ModBus 485 |
Optional I/O Card | YES - 4DI, 1AI, 1AO, 1OC,1 relay output |
Optional Relay Output Card | YES - 4 RO, 250 VAC, 3 A/30VDC, 3 A |
Optional Communication Card | YES - PROFIBUS DP, CANopen, SERCOS III, PROFINET IO, Ethernet IP, Modbus TCP, EtherCAT |
Optional Encoder Card | Not Support |
Size WxHxD (mm) | 95x166x167 |
Weight (kg) | 1.5 |
Mounting | Wall or DIN, Side by Side |
Rated Ambient Temperature | 45 ℃ |
Certificate | CE, EAC, UL, cUL, RCM, TUV, RoHS |
Application | Small machine: Fan, water pump, materials Conveyor, mixing equipment, HVAC, textile and wooding machinery, food processing & Packaging. With requirement: EMC filter, High-Standard, Ethernet Communication |
Connect to PC | YES-USB Type B |
