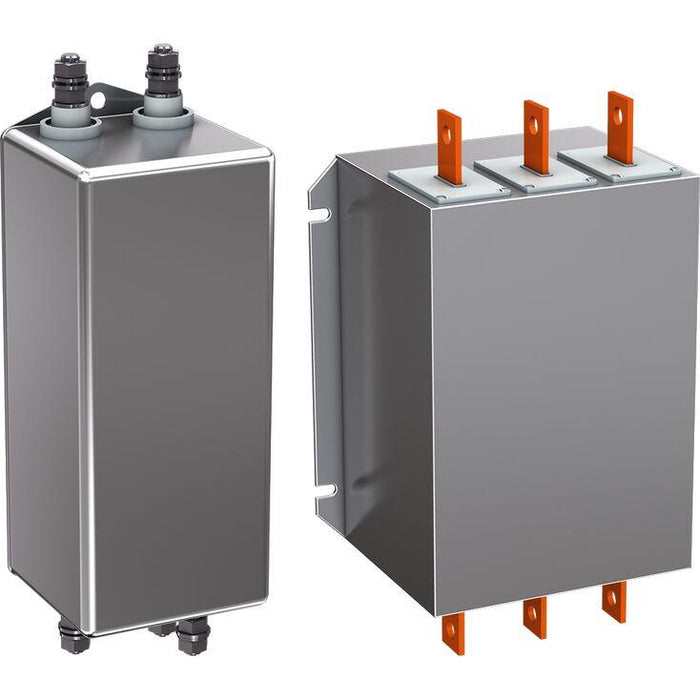

Line Filter Bosch Rexroth FCAF01.1A-A100-E-0120-A-05-NNNN [R911370815]

Name: Line Filter Bosch Rexroth FCAF01.1A-A100-E-0120-A-05-NNNN [R911370815]
Brand: Bosch Rexroth
SKU: R911370815
Price: 13711000.0 VND
Availability: InStock

by Bosch Rexroth

13.711.000₫

(Giá chưa VAT).

Mã kho: R911370815

Tồn kho: Vui lòng liên hệ

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

THÔNG SỐ KỸ THUẬT
Ordering Part number	R911370815
Type Code	FCAF01.1A-A100-E-0120-A-05-NNNN
General Introduction	Mains filters ensure compliance with the EMC limit values and suppress the leakage currents caused by capacity. The mains filters are tailored to the frequency converter and scalable by current, drive number, and motor cable length. In combination with shielded motor cables, the mains filters enable fault-free operation.
Serie of Filtes	FCAF01.1A
Main Voltage	3 AC 380-480 V
Nominal Current (A)	120
EMC Category	Category C3 as per DIN EN 61800-3
With this filter, Max. Cable Length from VFD to Motor (m) (Without Derating)	100
Protection Type	IP20
Combination with	VFC 5610 3 AC 380-480 V 30kW - 37kW EFC 5610 3 AC 380-480 V 30kW - 37kW
Size WxHxD (mm)	90x290x240
Weight (kg)	4.9
Application	To Comply with EMC C3 and increase the cable length from VFDs to Motor to 100m
