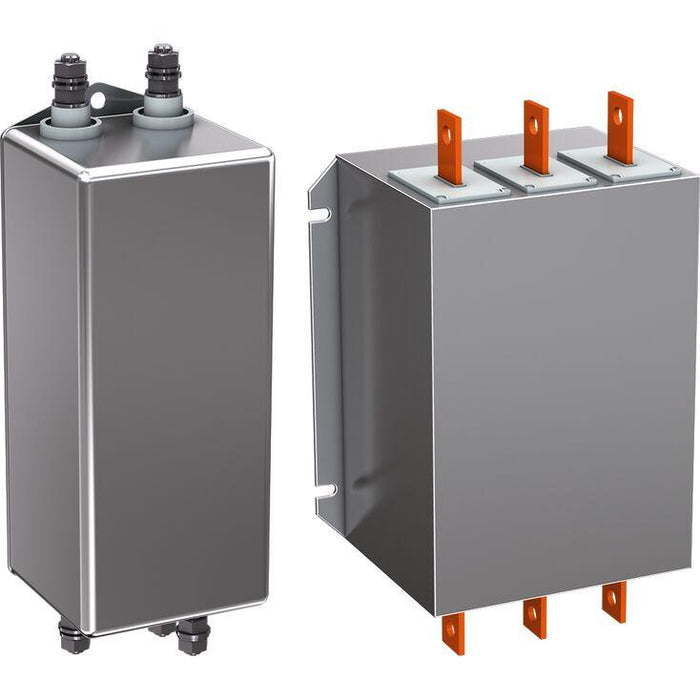

Line Filter Bosch Rexroth FCAF01.1A-A050-E-0025-N-03-NNNN [R911370806]
3.130.000₫
Mã kho: R911370806
HƯỚNG DẪN MUA HÀNG qua Điện thoại / Email
Website đang trong giai đoạn xây dựng. Thông tin liên hệ: tổng đài 0898.332.898 hoặc E-mail: Sales@nguyenxuong.com
HƯỚNG DẪN MUA HÀNG qua Điện thoại / Email
. Thông tin liên hệ: tổng đài 0898.332.898 hoặc E-mail: Sales@nguyenxuong.com
THÔNG SỐ KỸ THUẬT | |
---|---|
Ordering Part number | R911370806 |
Type Code | FCAF01.1A-A050-E-0025-N-03-NNNN |
General Introduction | Mains filters ensure compliance with the EMC limit values and suppress the leakage currents caused by capacity. The mains filters are tailored to the frequency converter and scalable by current, drive number, and motor cable length. In combination with shielded motor cables, the mains filters enable fault-free operation. |
Serie of Filtes | FCAF01.1A |
Main Voltage | 1 AC 200-240 V |
Nominal Current (A) | 25 |
EMC Category | Category C3 as per DIN EN 61800-3 |
With this filter, Max. Cable Length from VFD to Motor (m) (Without Derating) | 50 |
Protection Type | IP00 |
Combination with | VFC 3210 1 AC 200-240 V 2.2kW VFC x610 1 AC 200-240 V 2.2kW EFC x610 1 AC 200-240 V 2.2kW |
Size WxHxD (mm) | 59x153x53 |
Weight (kg) | 0.87 |
Application | To Comply with EMC C3 and increase the cable length from VFDs to Motor to 50m |
