![Block VB 2,8/1/24 7320395](http://nguyenxuong.com/cdn/shop/products/F7320395-01_387x444.jpg?v=1593757855)

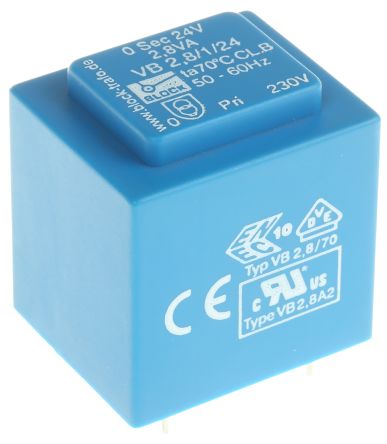

24V ac 1 Output Through Hole PCB Transformer, 2.8VA [VB 2,8/1/24]; 732-0395
by Block
0₫
Mã kho: 7320395
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Secondary Voltage Rating | 24V ac |
Power Rating | 2.8VA |
Primary Voltage Rating | 230V ac |
Number of Outputs | 1 |
Length | 32.3mm |
Width | 27.3mm |
Depth | 34mm |
Dimensions | 32.3 x 27.3 x 34mm |
Weight | 140g |
Mounting Type | Through Hole |
Maximum Temperature | +70°C |
Minimum Operating Frequency | 50Hz |
Maximum Operating Frequency | 60Hz |
