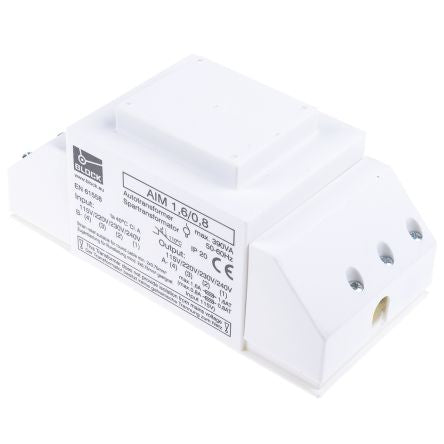

Block Enclosed Autotransformer, 115 V ac, 230 V ac Primary, 115 V ac, 220 V ac, 230 V ac, 240 V ac Secondary [AIM 1.6/0.8]; 293-2656
by Block
0₫
Mã kho: 2932656
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Primary Voltage Rating | 115 V ac, 230 V ac |
| Secondary Voltage Rating | 115 V ac, 220 V ac, 230 V ac, 240 V ac |
| Construction | Enclosed |
| Mounting Type | Panel Mount |
| Termination Type | Screw |
| Length | 166mm |
| Width | 77mm |
| Dimensions | 166 x 77 x 76mm |
| Depth | 76mm |
| Minimum Operating Frequency | 50Hz |
| Minimum Temperature | -20°C |
| Maximum Operating Frequency | 60Hz |
| Maximum Temperature | +40°C |
| Secondary Current Rating | 0.8 A, 1.6 A |
