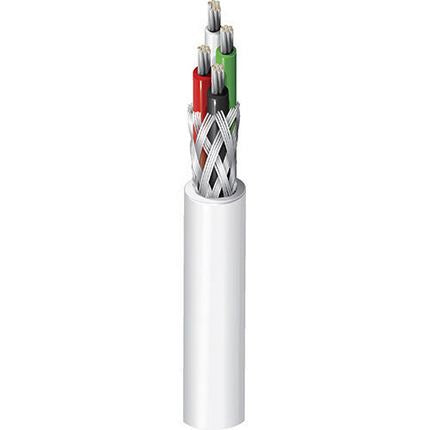

Belden 4 Conductor Copper Braid Industrial Cable White 305m Reel, 83348E Series [83348E 009100]; 176-2077
by Belden
0₫
Mã kho: 1762077
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 4 |
| Screened/Unscreened | Screened |
| Length | 30m |
| Sheath Colour | White |
| American Wire Gauge | 24 AWG |
| Outer Diameter | 3.556mm |
| Current Rating | 0.166666666666667 |
| Screen Type | Copper Braid |
| Maximum Operating Temperature | +200°C |
| Core Strands | 19/36 AWG |
| Sheath Material | TFE |
| Voltage Rating | 600 V ac |
| Fire Behaviour | Flame Retardant, Low Smoke Zero Halogen (LSZH) |
| Conductor Material | Copper |
| Conductor Resistance | 23.3 Ω @ 1000 ft |
| Minimum Bend Radius | 38.1 mm |
| Minimum Operating Temperature | -65°C |
| Insulation Material | TFE |
| Series | 83348E |
