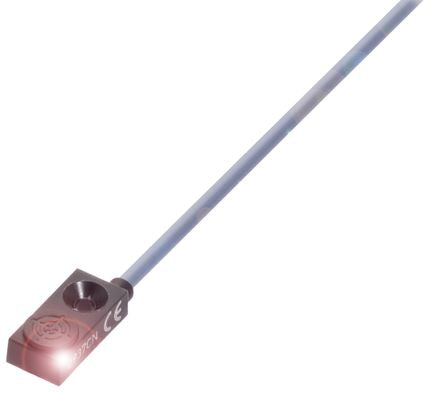

BALLUFF PNP-NO Inductive Sensor 10mm Length, 9.6 → 30 V dc supply voltage , IP67 Rating [BES R03KC-PSC30B-BP00,5-GS49-517]; 124-3787
by BALLUFF
0₫
Mã kho: 1243787
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Block |
| Output Type | PNP-NO |
| Detection Range | 3 mm |
| Terminal Type | M8 - 3 Pin with cable |
| Supply Voltage | 9.6 → 30 V dc |
| Length | 10mm |
| Width | 30mm |
| Depth | 6mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Flush Mount |
| Switching Current | 10 (No Load) mA |
| IP Rating | IP67 |
| Housing Material | PA 6-GF30 Black |
| Short Circuit Overload Protection | Yes |
| Standards Met | CE, CULus, IEC 60947-5-2 |
| Shielding | Shielded |
| Maximum Switching Frequency | 3kHz |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -25°C |
| Reverse Polarity Protection | Yes |
