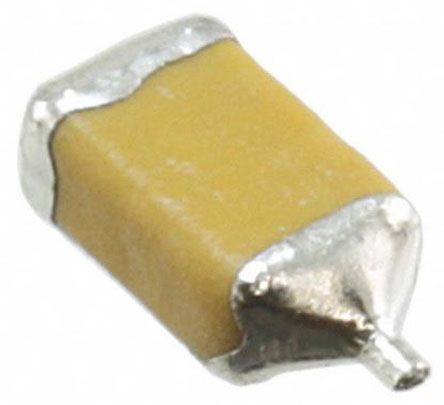

AVX Tantalum Capacitor 10μF 16V dc Electrolytic Solid F95 Series [F951C106MPAAQ2]; 136-1254
by AVX
0₫
Mã kho: 1361254
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Technology | Electrolytic |
Capacitance | 10 µF |
Voltage | 16 V dc |
Mounting Type | Surface Mount |
Package/Case | 905 |
Equivalent Series Resistance | 4Ω |
Length | 2.2mm |
Height | 1mm |
Dimensions | 2.2 x 1.25 x 1mm |
Series | F95 |
Electrolyte Type | Solid |
Dissipation Factor | 0.1 |
Minimum Operating Temperature | -55°C |
Dielectric Material Family | Tantalum |
Maximum Operating Temperature | +125°C |
Polarised | Polar |
Terminal Type | SMD |
Leakage Current | 1.6 μA |
