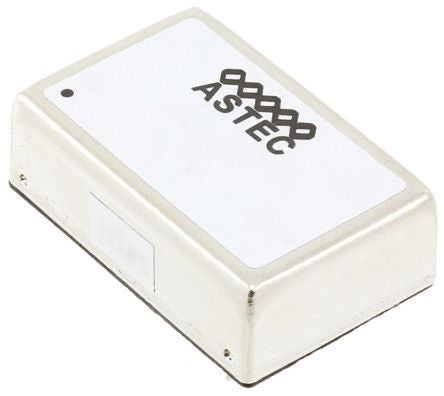

Artesyn Embedded Technologies ASA 6W Isolated DC-DC Converter Through Hole, Voltage in 18 → 75 V dc, Voltage out [ASA00C36-LS]; 162-1942
0₫
Mã kho: 1621942
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 15V dc |
| Input Voltage Range | 18 → 75 V dc |
| Input Voltage Nominal | 48 V dc |
| Isolation Voltage | 1.5kV dc |
| Power Rating | 6W |
| Output Current | 400mA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Efficiency | 0.81 |
| Package | DIP |
| Load Regulation | ±0.5% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +71°C |
| Depth | 10.16mm |
| Series | ASA |
| Length | 31.75mm |
