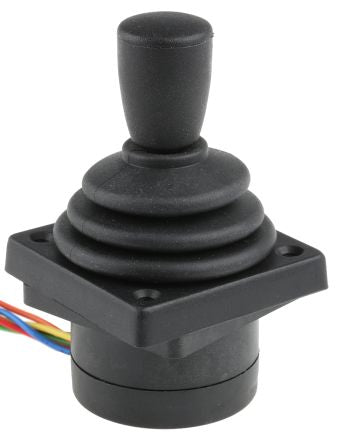

IP65 Contactless Joystick, 2 axes, 40 mA@ 5 V dc Through Hole 5V, -25 → +70°C [3140SE600]; 693-2310
by Apem
0₫
Mã kho: 6932310
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Axes | 2 |
| Switch Technology | Hall Effect |
| IP Rating | IP65 |
| Handle Type | Conical |
| Contact Voltage Rating | 5V |
| Contact Current Rating | 40 mA@ 5 V dc |
| Joystick Travel | 36 °, 50 ° |
| Terminal Type | Through Hole |
| Mechanical Life | 5000000Cycles |
| Depth Behind Panel | 20mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
| Operating Temperature Range | -25 → +70°C |
