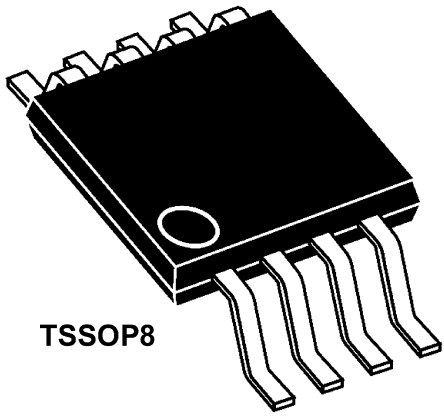

Analog Devices REF195GRUZ, Fixed Series Voltage Reference 5V, ±0.04 % 8-Pin, TSSOP [REF195GRUZ]; 111-2281
0₫
Mã kho: 1112281
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Voltage | 5V |
| Package Type | TSSOP |
| Reference Type | Fixed |
| Initial Accuracy | ±0.04 % |
| Mounting Type | Surface Mount |
| Topology | Series |
| Maximum Output Current | 30mA |
| Maximum Input Voltage | 18 V |
| Minimum Output Voltage | 4.99 V |
| Maximum Output Voltage | 5.01 V |
| Pin Count | 8 |
| Line Regulation | 8 ppm/V |
| Load Regulation | 8 ppm/mA |
| Dimensions | 3 x 4.4 x 1.05mm |
| Maximum Operating Temperature | +85 °C |
| Height | 1.05mm |
| Length | 3mm |
| Minimum Operating Temperature | -40 °C |
| Width | 4.4mm |
