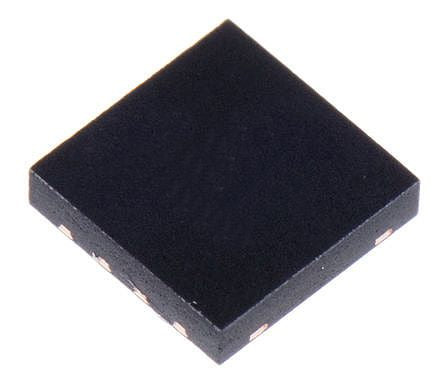

Linear Technology LTC3531EDD#PBF, Buck Boost Regulator 200mA, Adjustable 8-Pin, DFN [LTC3531EDD#PBF]; 145-1313
0₫
Mã kho: 1451313
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Regulator Function | Buck-Boost |
| Maximum Output Current | 200mA |
| Number of Outputs | 1 |
| Mounting Type | Surface Mount |
| Package Type | DFN |
| Pin Count | 8 |
| Output Type | Adjustable |
| Efficiency | 0.9 |
| Dimensions | 3 x 3 x 0.7mm |
| Height | 0.7mm |
| Width | 3mm |
| Maximum Input Voltage | 5.5 V |
| Length | 3mm |
| Maximum Operating Temperature | +85 °C |
| Maximum Output Voltage | 5 V |
| Minimum Input Voltage | 1.8 V |
| Minimum Output Voltage | 2 V |
| Minimum Operating Temperature | -40 °C |
