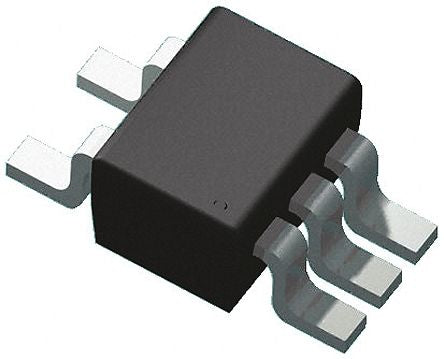

1.5MHz 600mA 1.8V Regulator TSOT23-5 [LTC3406ES5-1.8#TRMPBF]; 155-7571
0₫
Mã kho: 1557571
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 600mA |
| Maximum Output Voltage | 1.8 V |
| Regulator Function | Step Down |
| Minimum Input Voltage | 2.5 V |
| Maximum Input Voltage | 5.5 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 5 |
| Package Type | TSOT-23 |
| Switching Regulator | Yes |
| Line Regulation | 0.4 %/V |
| Load Regulation | 0.005 |
| Maximum Switching Frequency | 1.8 MHz |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 2.9 x 1.75 x 0.9mm |
| Efficiency | 0.96 |
| Width | 1.75mm |
| Height | 0.9mm |
| Length | 2.9mm |
| Maximum Operating Temperature | +85 °C |
