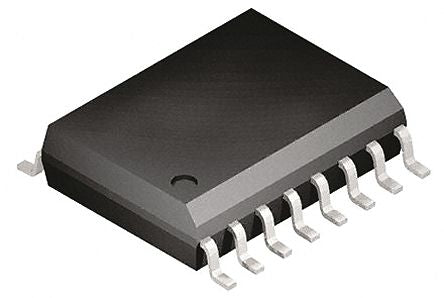

![Analog Devices LTC1535CSW#PBF 1557583](http://nguyenxuong.com/cdn/shop/products/R8229928-01_421c11b8-51da-43e2-b83c-e3c2f9898e6e_444x298.jpg?v=1594398515)
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Transmitters | 1 |
Package Type | SOIC |
Mounting Type | Surface Mount |
Pin Count | 28 |
Number of Receivers | 1 |
Typical Single Supply Voltage | 4.5 → 5.5 V |
Data Rate | 250kBd |
Number of Transceivers | 1 |
Interface Standards | RS-422, RS-485 |
Transmitter Signal Type | Differential |
Receiver Signal Type | Differential |
Minimum Operating Temperature | 0 °C |
Maximum Operating Temperature | +70 °C |
Width | 7.595mm |
Power Supply Type | Single |
Height | 2.337mm |
Length | 18.08mm |
Dimensions | 18.08 x 7.595 x 2.337mm |
Number of Drivers per Line | 128 |
Number of Receivers per Line | 128 |
