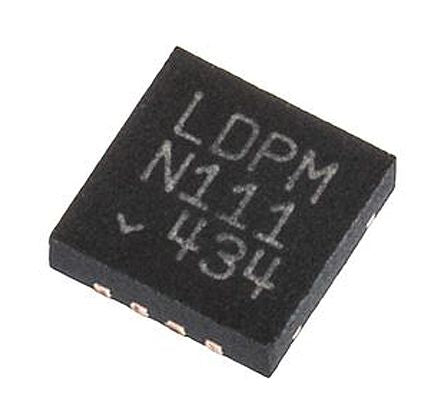

Linear Technology LT8410EDC-1#TRMPBF, Boost Converter, Boost 8mA, -0.3 → 40 V 8-Pin, DFN [LT8410EDC-1#TRMPBF]; 884-6810
0₫
Mã kho: 8846810
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Regulator Function | Boost |
| Maximum Output Current | 8mA |
| Number of Outputs | 1 |
| Line Regulation | 0.01 %/V |
| Mounting Type | Surface Mount |
| Package Type | DFN |
| Pin Count | 8 |
| Switching Regulator | Yes |
| Dimensions | 2 x 2 x 0.75mm |
| Height | 0.75mm |
| Maximum Operating Temperature | +125 °C |
| Maximum Input Voltage | 16 V |
| Maximum Output Voltage | 40 V |
| Width | 2mm |
| Minimum Output Voltage | -0.3 V |
| Minimum Operating Temperature | -40 °C |
| Minimum Input Voltage | 2.5 V |
| Length | 2mm |
