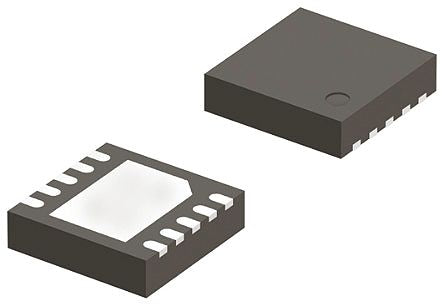

Linear Technology, LT3481IDD#PBF Switching Regulator 2A Adjustable, 1.265 → 20 V 10-Pin, DFN [LT3481IDD#PBF]; 822-5787
0₫
Mã kho: 8225787
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Output Current | 2A |
Maximum Output Voltage | 20 V |
Regulator Function | Step Down |
Minimum Output Voltage | 1.265 V |
Minimum Input Voltage | 3.6 V |
Maximum Input Voltage | 36 V |
Output Type | Adjustable |
Mounting Type | Surface Mount |
Number of Outputs | 1 |
Pin Count | 10 |
Package Type | DFN |
Switching Regulator | Yes |
Line Regulation | 0.02 %/V |
Maximum Operating Temperature | +125 °C |
Maximum Switching Frequency | 2.8 MHz |
Width | 3mm |
Dimensions | 3 x 3 x 0.7mm |
Height | 0.7mm |
Length | 3mm |
Minimum Operating Temperature | -40 °C |
