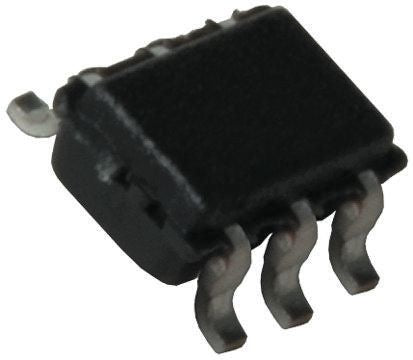

Linear Technology, LT1933IS6#TRMPBF DC-DC Converter 600mA Adjustable 6-Pin, TSOT-23 [LT1933IS6#TRMPBF]; 858-0841
0₫
Mã kho: 8580841
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 600mA |
| Regulator Function | Step Down |
| Minimum Input Voltage | 3.6 V |
| Maximum Input Voltage | 36 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 6 |
| Package Type | TSOT-23 |
| Switching Regulator | Yes |
| Line Regulation | 0.01 %/V |
| Maximum Switching Frequency | 600 kHz |
| Maximum Operating Temperature | +125 °C |
| Length | 2.8mm |
| Height | 0.9mm |
| Width | 1.5mm |
| Dimensions | 2.8 x 1.5 x 0.9mm |
| Minimum Operating Temperature | -40 °C |
