![Analog Devices AD590JF 427341](http://nguyenxuong.com/cdn/shop/products/F0427341-01_95c90862-1ea1-4d31-8269-63ed05e9eb0e_444x370.jpg?v=1594383081)

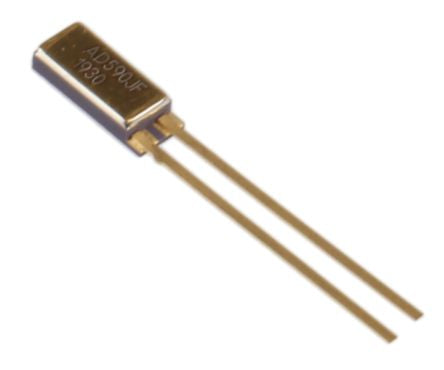

Analog Devices AD590JF, Temperature Sensor -55 → +150 °C ±5°C, 2-Pin FPAK [AD590JF]; 427-341
0₫
Mã kho: 427341
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Sensor Function | Temperature |
Output Type | Current |
Accuracy | ±5°C |
Mounting Type | Surface Mount |
Pin Count | 2 |
Operating Temperature Range | -55 → +150 °C |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +150 °C |
Minimum Operating Supply Voltage | 4 V |
Maximum Operating Supply Voltage | 30 V |
Package Type | FPAK |
Length | 2.36mm |
Height | 1.27mm |
Width | 6.1mm |
Dimensions | 2.36 x 6.1 x 1.27mm |
