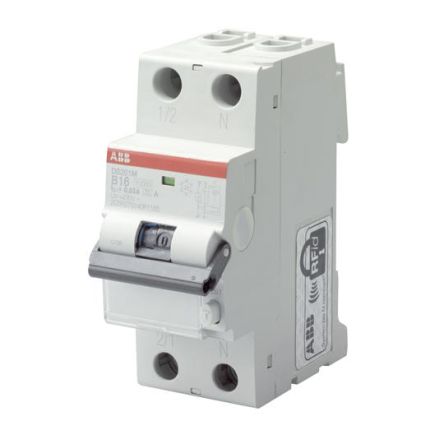

1P+N 4.5 kA 16 A RCBO, DIN Rail, Trip Sensitivity 300mA DS201 [471023]; 183-3706
by ABB
0₫
Mã kho: 1833706
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Series | DS201 |
Current Rating | 16 A |
Trip Sensitivity | 300mA |
Number of Poles | 1P+N |
Mounting Style | DIN Rail |
Circuit Breaker Type | RCBO |
Special Features | Protection Against Direct Contacts, Protection Against Earth Fault, Protection Against Indirect Contacts |
Overall Width | 69mm |
Rated AC Voltage | 230 → 240 V |
Overall Length | 35mm |
Tripping Characteristics | Type C |
Overall Depth | 85mm |
Breaking Capacity | 4.5 kA |
Standards Met | EN 61009-1, EN 61009-2-1, IEC 61009-1, IEC 61009-2-1 |
