![3M 3659-40 1209141](http://nguyenxuong.com/cdn/shop/products/RF121174-91_c4c0aeaa-786b-47bd-b55d-8ad27c2362ee_444x169.jpg?v=1594416603)

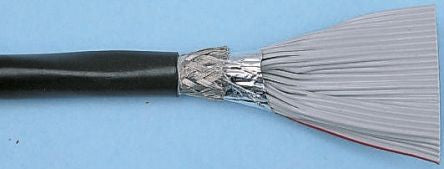

3M 40 Way Screened Round Ribbon Cable, 49.5 mm Width [3659-40]; 120-9141
by 3M
0₫
Mã kho: 1209141
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Ways | 40 |
Width | 49.5 mm |
Pitch | 1.27mm |
Reel Length | 30m |
Voltage Rating | 300 V |
Capacitance | 90.88 pF/m |
Characteristic Impedance | 106 Ω |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +80°C |
Outer Diameter | 10.9mm |
Screened/Unscreened | Screened |
Sheath Colour | Black |
Cable Shape | Ribbon |
American Wire Gauge | 28 |
Number of Strands | 7 |
Size of Strands | 36 AWG |
Conductor Strand Type | Stranded |
Core Strands | 13332 |
