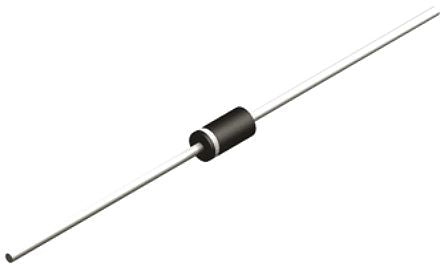

Vishay, 91V Zener Diode 5% 1.3 W Through Hole 2-Pin DO-41 [ZPY91-TR]; 145-2030
by Vishay
0₫
Mã kho: 1452030
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Nominal Zener Voltage | 91V |
Number of Elements per Chip | 1 |
Mounting Type | Through Hole |
Maximum Power Dissipation | 1.3 W |
Package Type | DO-41 |
Zener Type | General Purpose |
Zener Voltage Tolerance | 0.05 |
Pin Count | 2 |
Test Current | 5mA |
Maximum Zener Impedance | 250Ω |
Maximum Reverse Leakage Current | 500nA |
Length | 5.2mm |
Dimensions | 5.2 x 2.6mm |
Diameter | 2.6mm |
Maximum Operating Temperature | +175 °C |
