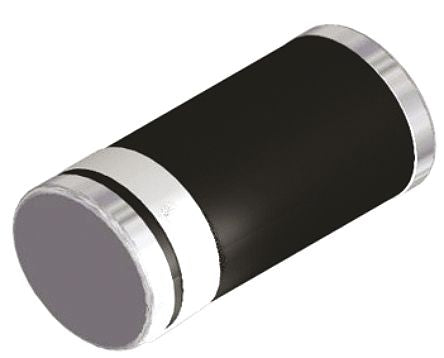

Vishay, 16V Zener Diode 5% 1 W SMT 2-Pin DO-213AB [ZM4745A-GS08]; 145-1859
by Vishay
0₫
Mã kho: 1451859
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 16V |
| Diode Configuration | Single |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 1 W |
| Package Type | DO-213AB |
| Zener Type | General Purpose |
| Zener Voltage Tolerance | 0.05 |
| Pin Count | 2 |
| Test Current | 15.5mA |
| Maximum Zener Impedance | 16Ω |
| Maximum Reverse Leakage Current | 5µA |
| Length | 5.2mm |
| Diameter | 2.6mm |
| Dimensions | 5.2 x 2.6mm |
| Automotive Standard | AEC-Q101 |
| Maximum Operating Temperature | +175 °C |
