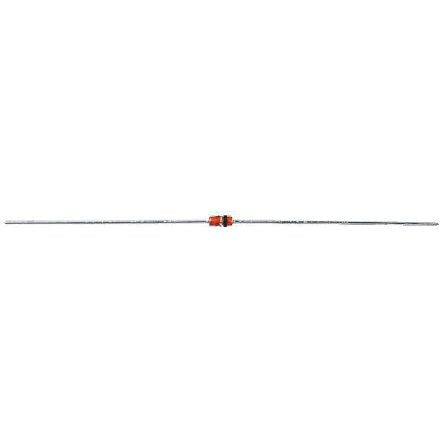

Vishay, 6.8V Zener Diode 2% 500 mW Through Hole 2-Pin DO-35 [TZX6V8C-TR]; 165-6013
by Vishay
0₫
Mã kho: 1656013
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 6.8V |
| Mounting Type | Through Hole |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 500 mW |
| Package Type | DO-35 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 0.02 |
| Pin Count | 2 |
| Test Current | 5mA |
| Maximum Zener Impedance | 15Ω |
| Maximum Reverse Leakage Current | 1µA |
| Length | 3.9mm |
| Diameter | 1.7mm |
| Dimensions | 1.7 (Dia.) x 3.9mm |
| Maximum Operating Temperature | +175 °C |
