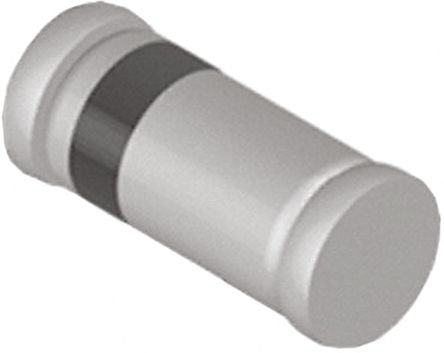

![Vishay TZM5245B-GS08 1452747](http://nguyenxuong.com/cdn/shop/products/R8185314-01_38cd03e7-eaee-4833-b8d9-cb24cdb6a3ea_444x353.jpg?v=1594318136)
Vishay, 15V Zener Diode 5% 500 mW SMT 2-Pin SOD-80 [TZM5245B-GS08]; 145-2747
by Vishay
0₫
Mã kho: 1452747
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Zener Voltage | 15V |
Diode Configuration | Single |
Mounting Type | Surface Mount |
Number of Elements per Chip | 1 |
Maximum Power Dissipation | 500 mW |
Package Type | SOD-80 |
Zener Type | Voltage Regulator |
Zener Voltage Tolerance | 0.05 |
Pin Count | 2 |
Test Current | 8.5mA |
Maximum Zener Impedance | 16Ω |
Maximum Reverse Leakage Current | 100nA |
Length | 3.7mm |
Width | 1.6mm |
Dimensions | 3.7 x 1.6 x 1.6mm |
Height | 1.6mm |
Maximum Operating Temperature | +175 °C |
Typical Voltage Temperature Coefficient | 0.082%/K |
