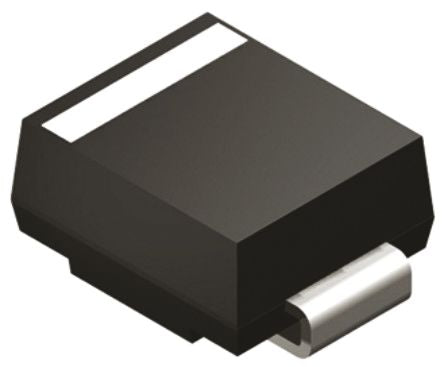

Vishay, 43V Zener Diode 5% 1.5 W SMT 2-Pin DO-214AA [SMZJ3804B-E3/52]; 165-6138
by Vishay
0₫
Mã kho: 1656138
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 43V |
| Diode Configuration | Single |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 1.5 W |
| Package Type | DO-214AA (SMB) |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 0.05 |
| Pin Count | 2 |
| Test Current | 8.7mA |
| Maximum Zener Impedance | 950Ω |
| Maximum Reverse Leakage Current | 5µA |
| Length | 4.57mm |
| Width | 3.94mm |
| Dimensions | 4.57 x 3.94 x 2.24mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Height | 2.24mm |
