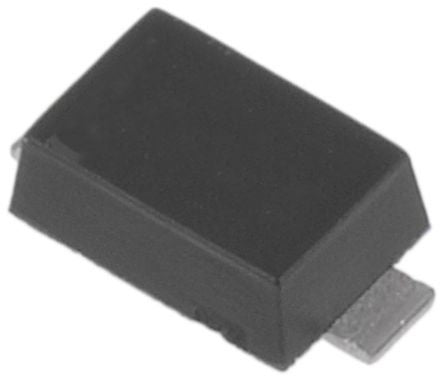

Vishay, 15V Zener Diode ±5% 500 mW SMT 2-Pin SOD-123 [MMSZ5245B-E3-08]; 180-7222
by Vishay
0₫
Mã kho: 1807222
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 15V |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 500 mW |
| Package Type | SOD-123 |
| Zener Type | Small Signal |
| Zener Voltage Tolerance | ±5% |
| Pin Count | 2 |
| Test Current | 8.5mA |
| Maximum Zener Impedance | 16Ω |
| Maximum Reverse Leakage Current | 100nA |
| Length | 2.85mm |
| Width | 0.45mm |
| Dimensions | 2.85 x 0.45 x 1.25mm |
| Maximum Operating Temperature | +150 °C |
| Typical Voltage Temperature Coefficient | 0.08%/°C |
| Height | 1.25mm |
| Automotive Standard | AEC-Q101 |
| Minimum Operating Temperature | -55 °C |
