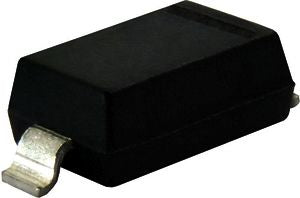

Vishay, 15V Zener Diode ±5% 500 mW SMT 2-Pin SOD-123 [MMSZ5245B-E3-08]; 180-6999
by Vishay
0₫
Mã kho: 1806999
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Nominal Zener Voltage | 15V |
Number of Elements per Chip | 1 |
Mounting Type | Surface Mount |
Maximum Power Dissipation | 500 mW |
Package Type | SOD-123 |
Zener Type | Small Signal |
Zener Voltage Tolerance | ±5% |
Pin Count | 2 |
Test Current | 8.5mA |
Maximum Zener Impedance | 16Ω |
Maximum Reverse Leakage Current | 100nA |
Length | 2.85mm |
Width | 0.45mm |
Dimensions | 2.85 x 0.45 x 1.25mm |
Minimum Operating Temperature | -55 °C |
Typical Voltage Temperature Coefficient | 0.08%/°C |
Maximum Operating Temperature | +150 °C |
Height | 1.25mm |
Automotive Standard | AEC-Q101 |
