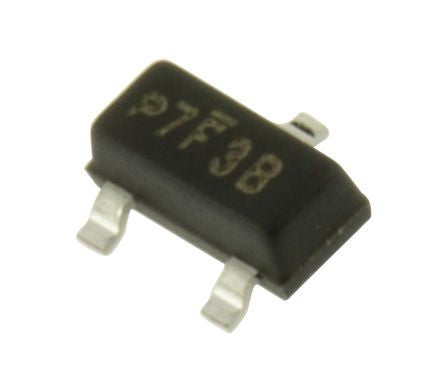

Vishay, 3.3V Zener Diode ±5% 350 mW SMT 3-Pin SOT-23 [MMBZ4620-E3-08]; 145-2333
by Vishay
0₫
Mã kho: 1452333
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 3.3V |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 350 mW |
| Package Type | SOT-23 |
| Zener Type | General Purpose |
| Zener Voltage Tolerance | ±5% |
| Pin Count | 3 |
| Test Current | 0.25mA |
| Maximum Zener Impedance | 1650Ω |
| Maximum Reverse Leakage Current | 7.5µA |
| Length | 3.1mm |
| Width | 1.43mm |
| Dimensions | 3.1 x 1.43 x 1.15mm |
| Minimum Operating Temperature | -55 °C |
| Height | 1.15mm |
| Forward Current | 200mA |
| Maximum Operating Temperature | +150 °C |
| Power Dissipation | Maximum of 350mW |
| Forward Voltage | 1.1V |
