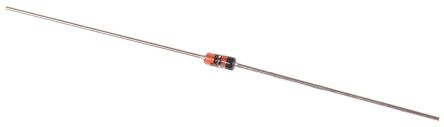

Vishay, 18V Zener Diode 2% 500 mW Through Hole 2-Pin DO-35 [BZX55B18-TR]; 812-8525
by Vishay
0₫
Mã kho: 8128525
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Zener Voltage | 18V |
Diode Configuration | Single |
Number of Elements per Chip | 1 |
Mounting Type | Through Hole |
Maximum Power Dissipation | 500 mW |
Package Type | DO-35 |
Zener Type | Voltage Regulator |
Zener Voltage Tolerance | 0.02 |
Pin Count | 2 |
Test Current | 5mA |
Maximum Zener Impedance | 50Ω |
Maximum Reverse Leakage Current | 2µA |
Length | 3.9mm |
Dimensions | 1.7 (Dia.) x 3.9mm |
Diameter | 1.7mm |
Maximum Operating Temperature | +175 °C |
Typical Voltage Temperature Coefficient | 0.11%/K |
