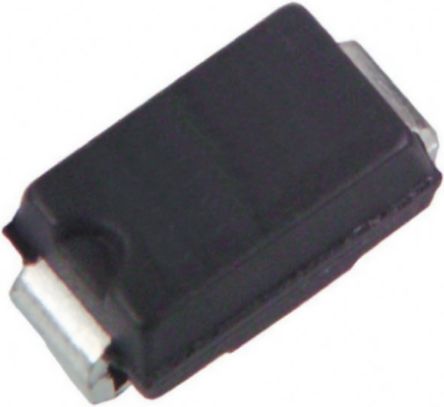

Taiwan Semi, 47V Zener Diode 6% 800 mW SMT 2-Pin Sub SMA [BZD27C47P R3]; 169-9139
0₫
Mã kho: 1699139
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 47V |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 800 mW |
| Package Type | Sub SMA |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 0.06 |
| Pin Count | 2 |
| Test Current | 10mA |
| Maximum Zener Impedance | 45Ω |
| Maximum Reverse Leakage Current | 1µA |
| Length | 2.9mm |
| Width | 1.9mm |
| Dimensions | 2.9 x 1.9 x 1.43mm |
| Typical Voltage Temperature Coefficient | 0.095%/°C |
| Maximum Operating Temperature | +175 °C |
| Minimum Operating Temperature | -65 °C |
| Height | 1.43mm |
