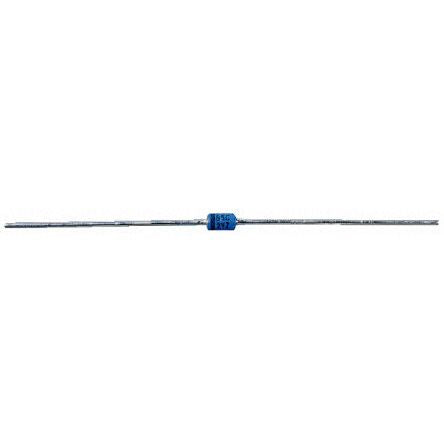

![Taiwan Semiconductor 1N4747A R0 6875465](http://nguyenxuong.com/cdn/shop/products/R282943-01_891d5feb-5cd2-40c2-b4e7-0a95c222cf43_444x444.jpg?v=1594025681)
Taiwan Semi, 20V Zener Diode 5% 1 W Through Hole 2-Pin DO-41 [1N4747A R0]; 687-5465
0₫
Mã kho: 6875465
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Zener Voltage | 20V |
Diode Configuration | Single |
Number of Elements per Chip | 1 |
Mounting Type | Through Hole |
Maximum Power Dissipation | 1 W |
Package Type | DO-41 |
Zener Type | Voltage Regulator |
Zener Voltage Tolerance | 0.05 |
Pin Count | 2 |
Test Current | 12.5mA |
Maximum Zener Impedance | 22Ω |
Maximum Reverse Leakage Current | 5µA |
Length | 5.2mm |
Width | 2.7mm |
Dimensions | 5.2 x 2.7 x 2.7mm |
Height | 2.7mm |
Minimum Operating Temperature | -65 °C |
Maximum Operating Temperature | +200 °C |
